DS2

図面

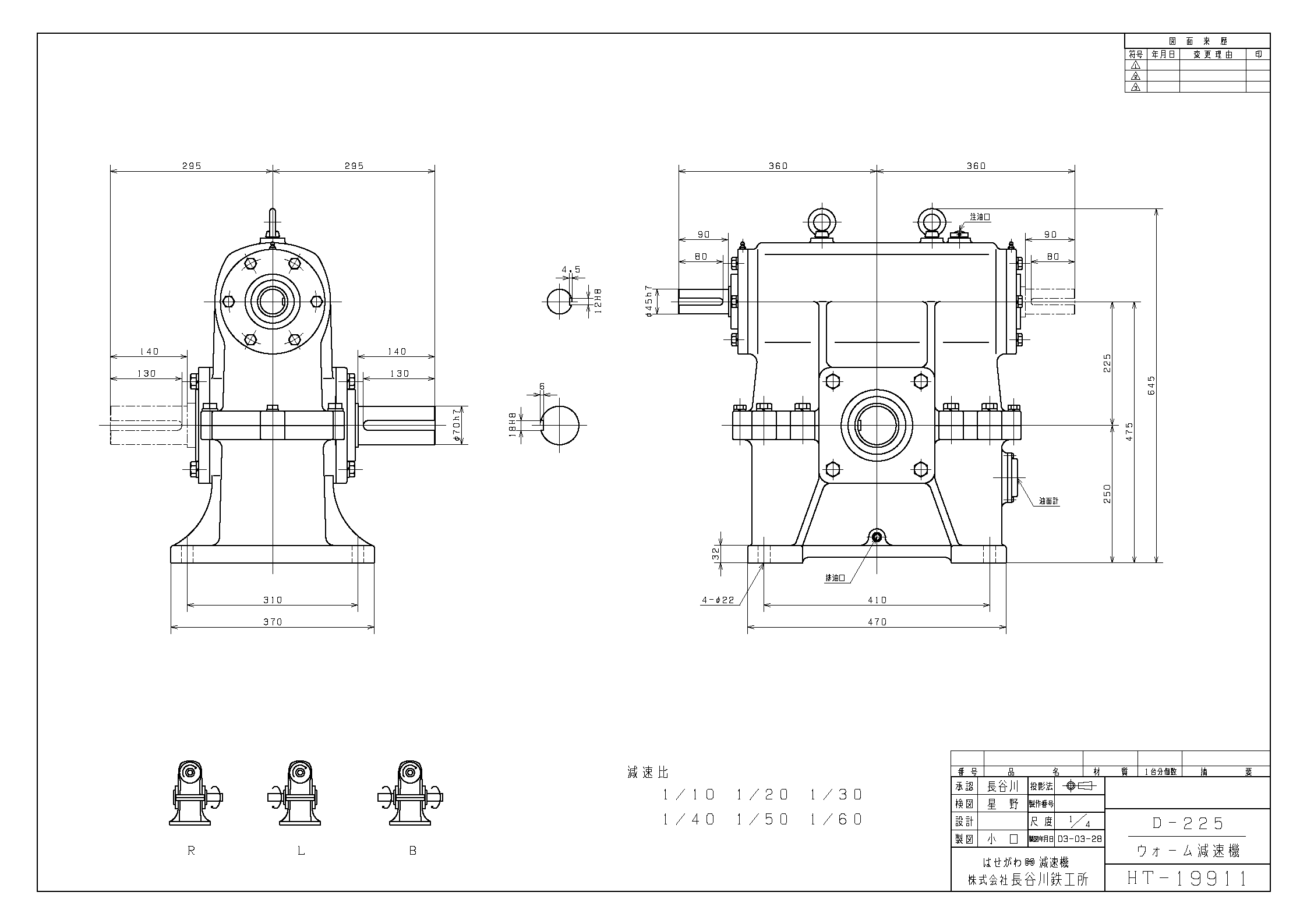

225型

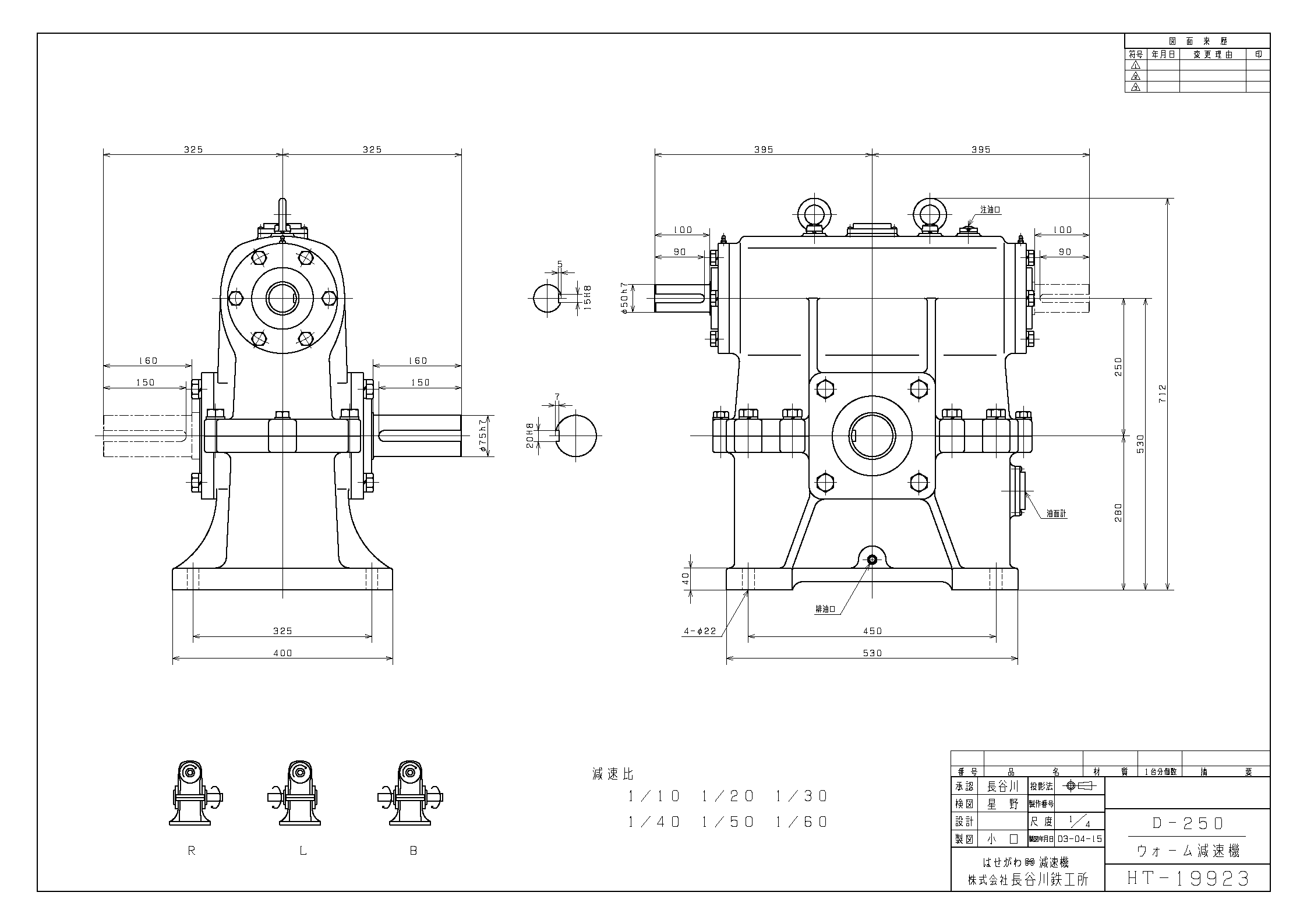

250型

300型

伝動能力表

減速比入力軸回転数項目単位43型55型70型78型85型92型102型125型150型175型200型225型250型300型
1/101800(r/min)入力動力Kw0.731.243.143.764.095.517.1512.1014.2022.332.836.350.2
出力トルクN・m32.5455.86147.0178.4191.1260.7341.0578.2698.71088160717742470
出力O.H.LN803.61176169517352283480254596096713411672124171400424755
1500入力動力Kw0.671.172.943.513.775.086.6211.113.120.730.434.146.9
出力トルクN・m35.4862.521637198208.7286.2375.3635.0767.31196178419802764
出力O.H.LN8331245180318422421505757536429751712289130731494525725
1200入力動力Kw0.61.072.693.223.454.656.0210.111.818.727.430.842.8
出力トルクN・m3970.36185.2224.4236.2323.4422.4710.5858.51343.019992244.03136
出力O.H.LN8331313194019802607514561646889.0805613171140141587625725
1000入力動力Kw0.540.972.462.953.254.375.659.311.0017.325.328.339.6
出力トルクN・m41.5576.54200.9245263.6360.6470.4783.0947.71480220524703469
出力O.H.LN8331421205821072773514565377301.0854613975148571680725725
500入力動力Kw0.330.631.581.912.283.044.036.98.0713.119321.329.8
出力トルクN・m48.3193.79248.9305.8354.8483.1646.8111713522166322436165027
出力O.H.LN8331705239126463489514572328820.01047617042182182055125725
1/151800(r/min)入力動力Kw0.550.922.352.793.054.115.349.412.418.62329.837
出力トルクN・m34.6959.49157.8192.1202.9279.3365.5655.6896.71313163721362656
出力O.H.LN8331343194019802607514561646889.0805613171140141587625725
1500入力動力Kw0.510.882.212.642.823.784.958.711.517.221.527.634.6
出力トルクN・m37.8366.74176.4214.6222.5304.8400.8719.3989.81450182323722969
出力O.H.LN8331421205821072773514565377301854613975148571680725725
1200入力動力Kw0.460.812.022.422.63.54.537.910.415.619.52531.7
出力トルクN・m41.6574.87198242.1252.8347.9452.8805.610981627205826753381
出力O.H.LN8331529220522542969514569487781.0909414876158171797325725
1000入力動力Kw0.410.741.852.222.463.294.277.359.6714.4182329.3
出力トルクN・m44.281.44215.6262.6281.3386.1504.7894.712151793225429403724
出力O.H.LN83316272352241131756514572328193.0958415670166701914925725
500入力動力Kw0.250.481.21.441.742.313.075.47.121113.715.121.9
出力トルクN・m51.3599.96264.6325.4377.3514.5690.91254.0172352617331237345400
出力O.H.LN8331705219530383989514572328820.01159317042199922157025725
1/201800(r/min)入力動力Kw0.450.91.492.252.633.194.367.178.3314.419.223.629.141.1
出力トルクN・m35.4875.07125.4197228.3280.3391658.6774.213431793220527443861
出力O.H.LN8331470212721662862514567237517.087911436715288172772572528626
1500入力動力Kw0.420.851.42.122.452.974.036.77.713.317.921.727.138.7
出力トルクN・m38.7183.01140.1219.5251.9308.7430.2732.1851.614801980243030484351
出力O.H.LN8331568226423133048514570857928.092711516116121182082572530174
1200入力動力Kw0.380.771.31.942.32.773.756.166.9712.116.119.824.835.4
出力トルクN・m42.4392.12158.8247288.1352.8492826.1952.616562225274434594949
出力O.H.LN8331686239124893283514572328457.098881618017209196102572532497
1000入力動力Kw0.340.711.21.792.132.573.55.86.5611.214.918.6322.832.8
出力トルクN・m45.0898.98173.5269.5316.5389.1541.9921.2105818232440301837835478
出力O.H.LN8331705239126463489514572328820104761704219992215702572534045
500入力動力Kw0.210.450.81.171.461.562.494.15.098.4911.411.817.522.1
出力トルクN・m52.43118217.6332.2408.7504.7704.61245.0149026363567373455576791
出力O.H.LN8331705239132933989514572328820.0115931704219992215702572536515
1/301800(r/min)入力動力Kw0.340.561.391.651.982.413.125.47.0310.613.116.720.929.2
出力トルクN・m35.7761.15162.7198236.2287.1378.3676.293013621695222527543920
出力O.H.LN8331686239124893273514572328487.099181704217258196102572532497
1500入力動力Kw0.320.551.321.561.852.242.915.026.549.8412.315.519.627.5
出力トルクN・m3968.6182.3221.5260.7314.6414.5743.8101915091891247030874400
出力O.H.LN8331705239126563499514572328820.0104761704218218205512572534045
1200入力動力Kw0.290.511.211.441.742.12.684.65.968.9811.214.21825.2
出力トルクN・m42.8376.93204.8249.9297.9358.7466.5831.0114716862127277334994998
出力O.H.LN8331705239128523753514572328820.0112011704219482215702572536515
1000入力動力Kw0.260.471.121.331.621.992.554.45.268.3810.413.116.723.4
出力トルクN・m45.3783.59222.5271.5327.3398.9520.4928.1127418522332304838515527
出力O.H.LN8331705239130483989514572328820.0115931704219992215702572536515
500入力動力Kw0.170.320.750.881.131.441.893.34.196.548.128.612.925.1
出力トルクN・m52.72103272.4335.2421.4529.2710.51294.0178427053420373456066791
出力O.H.LN8331705239132933989514572328820.0115931704219992215702572536515
1/401800(r/min)入力動力Kw0.280.550.891.321.551.852.54.14.658.0610.713.116.123.6
出力トルクN・m35.2874.87125.4197228.3279.3390665.4775.213431803219527443871
出力O.H.LN8331705239127443616514572328820.0108091704218806213642572535398
1500入力動力Kw0.260.530.851.251.461.742.333.84.347.49.9512.11521.5
出力トルクN・m38.5182.71140.1218.5251.9308.7431.2730.1853.614801989244030584341
出力O.H.LN8331705239129203842514572328820.0114271704219884215702572536515
1200入力動力Kw0.240.480.791.161.381.642.193.63.966.889.0611.113.819.8
出力トルクN・m42.2491.73158.8247287.1352.8492.9828.1951.616662225274434594969
出力O.H.LN8331705239131363989514572328820.0115931704219992215702572536515
1000入力動力Kw0.220.440.741.081.291.542.063.373.86.48.4210.412.818.4
出力トルクN・m44.9898172.5268.5316.5388.1542.9923.2105818232450302837835488
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
500入力動力Kw0.140.290.510.730.911.091.452.422.8356.646.9810.112.1
出力トルクN・m52.14117216.6331.2407.7502.7702.71235.0149026363577373455666791
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
1/501800(r/min)入力動力Kw0.250.360.721.121.211.582.033.344.56.178.739.941317.6
出力トルクN・m37.6351.94114.7201.9209.7297.9369.5641.9915.312051725191126463724
出力O.H.LN8331705239129503989514572328820115441704219992215702572536515
1500入力動力Kw0.240.340.691.061.141.511.913.114.225.688.229.2912.116.5
出力トルクN・m40.8758.02127.4224.4230.3334.2406.7703.6999.613131911212729504145
出力O.H.LN8331705239131463989514572328820115931704219992215702572536515
1200入力動力Kw0.210.320.660.961.081.391.82.913.945.257.468.611.215.2
出力トルクN・m44.3965.07146248.9262.6373.4464.5797.7114714702146241133324704
出力O.H.LN8331705239132053989514572328820115931704219992215702572536515
1000入力動力Kw0.20.30.610.891.021.281.72.783.724.96.938.0510.414
出力トルクN・m46.9470.76158.8267.5290.1404.7512.5889.8126416072352265636555145
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
500入力動力Kw0.120.210.440.580.740.851.222.032.694.235.576.258.3210
出力トルクN・m53.5186.63200.9320.5376.3492.9667.41186169525283450373453706791
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
1/601800(r/min)入力動力Kw0.220.350.790.890.941.291.62.583.135.146.888.8210.215.3
出力トルクN・m34.5955.47148172.5183.3283.2345594.9709.511471627200924893548
出力O.H.LN8331705239131263989514572328820115931704219992215702572536515
1500入力動力Kw0.210.340.760.840.891.241.522.462.924.786.348.219.4514.4
出力トルクN・m37.7361.94164.6192.1201.9316.5384.2662.5781.112541784223427543969
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
1200入力動力Kw0.190.310.710.790.841.141.422.32.714.435.887.568.6313.3
出力トルクN・m41.4569.48185.2216.6230.3354.8436.1755.6870.214112009250930874537
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
1000入力動力Kw0.180.290.660.740.811.051.332.142.64.135.57.098.0612.4
出力トルクN・m4475.46200.9235.2258.7284.2476.3826.1970.215192205276433915018
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515
500入力動力Kw0.120.210.460.510.620.70.931.481.993.354.395.36.449.17
出力トルクN・m51.0692.51246290.1350.8467.5597.81039136222543195373449496791
出力O.H.LN8331705239132933989514572328820115931704219992215702572536515

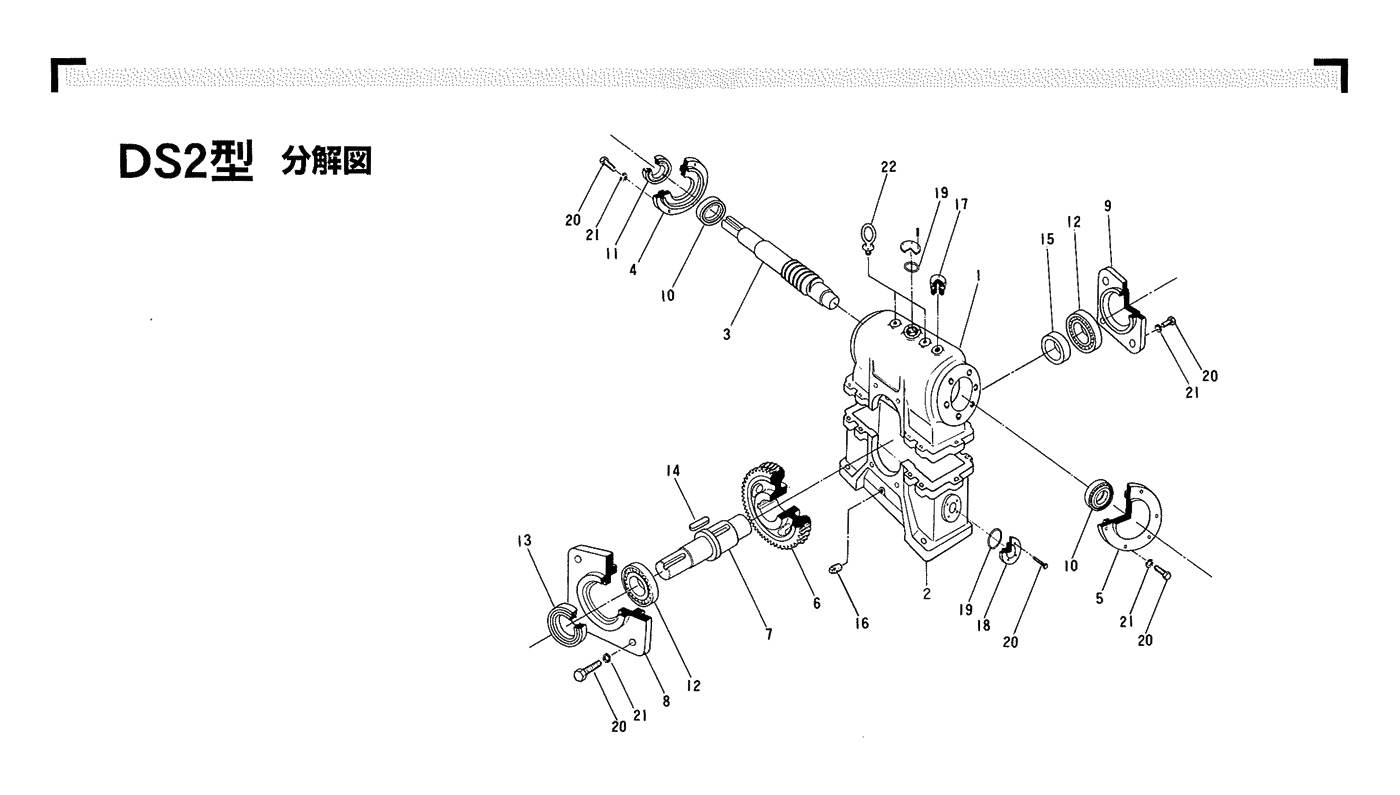

展開図

展開図

部品表

  1. 上ケーシング
  2. 下ケーシング
  3. 入力軸(ウォーム軸)
  4. 入力シールドカバー
  5. 入力エンドカバー
  6. ウォームホイール
  7. 出力軸
  8. 出力シールドカバー
  9. 出力エンドカバー
  10. 入力軸受(ベアリング)
  11. 入力オイルシール
  12. 出力軸受(ベアリング)
  13. 出力オイルシール
  14. 出力軸キー
  15. カラー
  16. ドレンプラグ
  17. オイルキャップ
  18. 油面計
  19. Oリング
  20. 六角ボルト
  21. スプリングワッシャー
  22. アイボルト

ベアリング・オイルシール型番詳細

43型55型70型78型85型92型102型125型150型175型200型225型250型300型
DS2,DS22入力ベアリング3020330204302053020530206302063020630307302093031030311303123031330316
オイルシール173082035825428254283048830488305011355511355511456812507212557812608212709212
出力ベアリング62036204620662066207302083020930210302113021330214303163031730320
オイルシール1730820358284811305011355511406212456812506595578126285126890128010513851101310012513

※オイルシールはJIS規格のタイプ4(旧JIS規格のD型)を使用しています。
